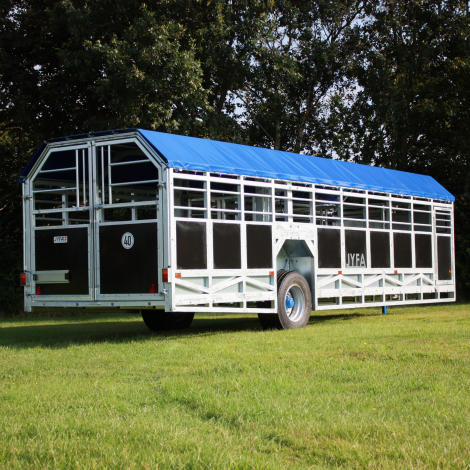

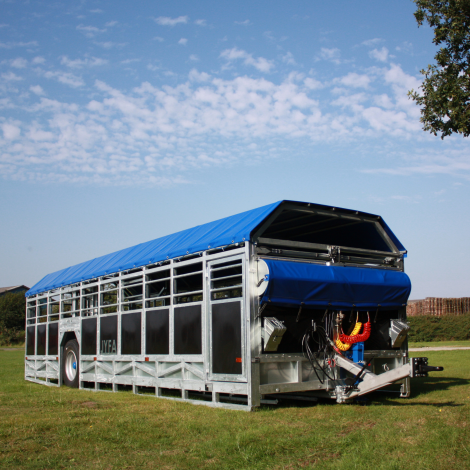

DEVELOPED IN COORPORATION WITH TÜVThe trailer is specially developed for the German market and tested by the TÜV on the German roads to 40 km/h.The characteristic of the 8M DE Transport Trailer is that it has built-in wheel cases. The total external width of the trailer is thus 2,55 m. The trailer box is 8 m, and the total length including drawbar is 9,4 m. The inner width is 2,40 m, and the width between the wheel cases is 1,61 m, giving you a floor space of 17,9 m2.Hydraulic Height Adjustment Function
The hydraulic height adjustment function offers many every day advantages. During loading or unloading, the floor is lowered allowing the animals to walk straight into the trailer. After loading, the trailer is raised back up. As well as giving you and the animals a stress free loading and unloading, this hydraulic height function also offers you the advantage of leaving the trailer lowered on the ground with forage inside, allowing the cattle and calves to get used to the trailer and feel safe with it before transport.Product Information
Trailer box length: 8 meters
Total length, incl. drawbar: 9,4 meters
Inner trailer width: 2,40 meters
Inner width between the wheel cases: 1,61 meters
External width: 2,55 meters
Loading height: 13 cm
Standard Equipment✔ Roof
✔ LED rear lights

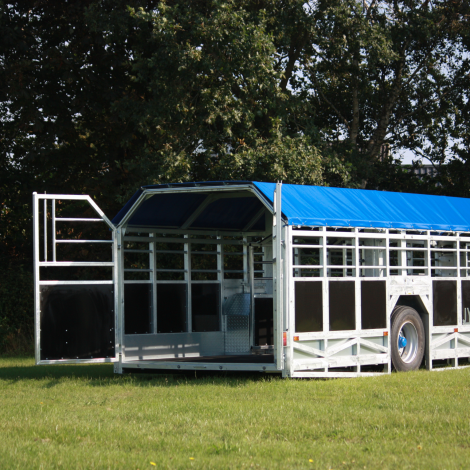

✔ Double gates in the center of the trailer
✔ Hydraulic✔ Brakes (air hydraulic brakes)

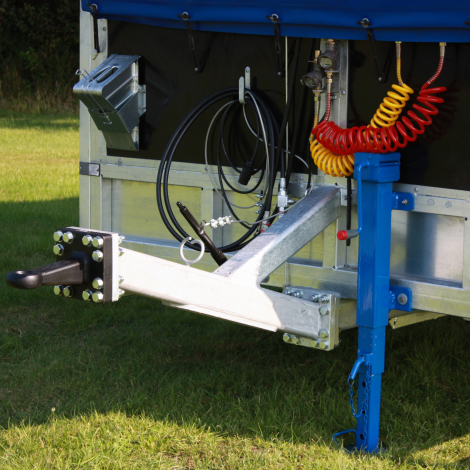

✔ Handbrake✔ Fully galvanized✔ Galvanized drawbar✔ Double doors at the rear end, with a doublelock system✔ Emergency Exit✔ 12 mm black recycled plastic plates on allsides✔ Galvanized non-slip tear plate floor✔ Ø40 mm drawbar eye✔ Bottom sledge✔ Support leg✔ Wheel size 385/55 R19,5
Order
This product is not available online. Please order directly from your nearest dealer - Find a JYFA dealer close to you! - Additional Information
-
Additional Information
Article No. 31800 Trailer box length 8 m Total length including drawbar 9,4 m Inner trailer width 2,40 m Trailer inner width from wheel case to wheel case 1,61 m External trailer width 2,55 m Floor space 17,9 m2 Number of animals (cattle) Approx. 11-14 Loading height 13 cm Wheel size 385/55 R19,5 Note The trailer is equipped with an air-hydraulic brake system - Video
-
