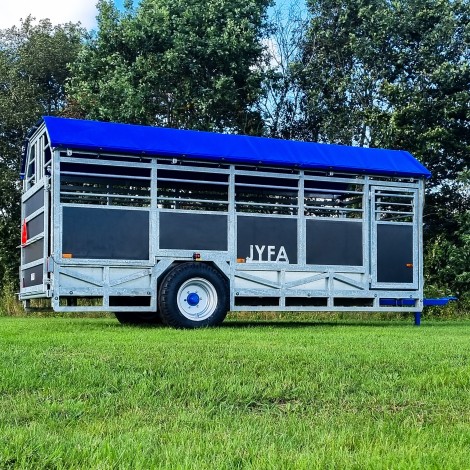

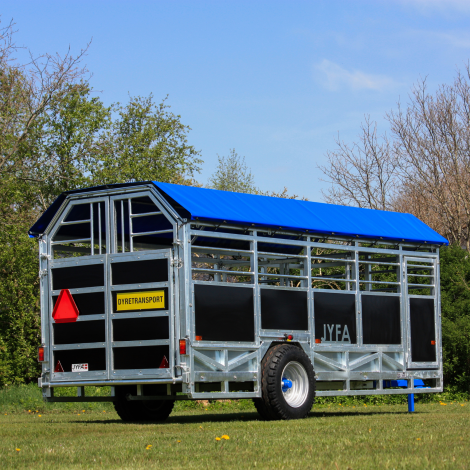

The characteristic of this 5m Smal Transport Trailer (SMA500) is the semi built-in wheel cases. The total external width is ONLY 2,35 m, and the total length of the trailer incl. drawbar is 6,4 meters. The actual trailer box is 5 meters longs, and the inner width is 2 m. The total floor space is 9,5 m2 which, allows approx. 5-7 animals according to Danish area requirements.
Product Information
Trailer box lenght: 5 meters
Total lenght, incl. drawbar: 6,4 meters
Inner trailer lenght: 2 meters
External trailer lenght: 2,35 meters
Standard Equipment

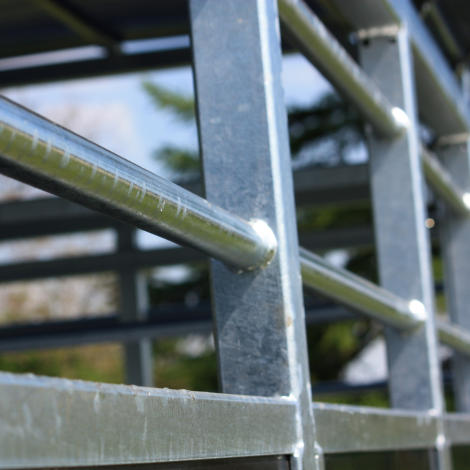

✔ Fully galvanized
✔ Removable blue drawbar
✔ Double doors at the rear end, with a double
lock system
✔ Emergency Exit

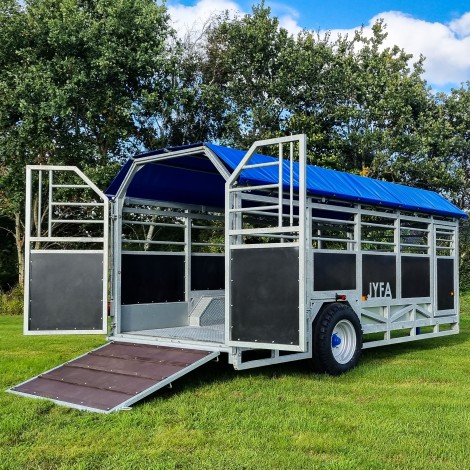

✔ Ramp at the rear end, with 12 mm
waterproof wooden botex plates and
built-in-steps
✔ 12 mm black recycled plastic plates on all
sides

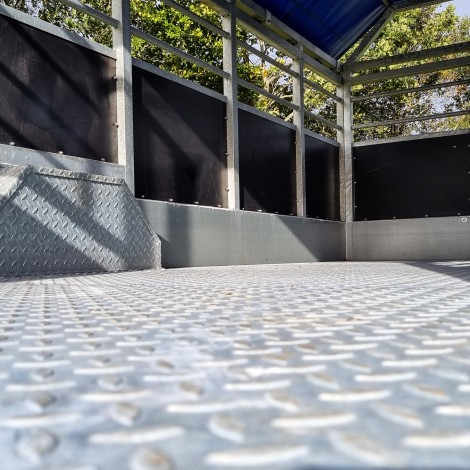

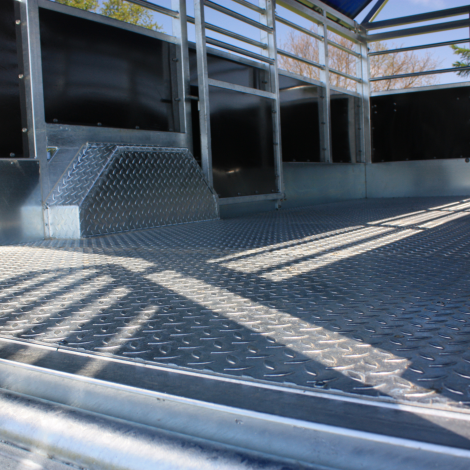

✔ Galvanized non-slip tear plate floor
✔ Ø50 mm drawbar eye
✔ Bottom sledge
✔ Support leg

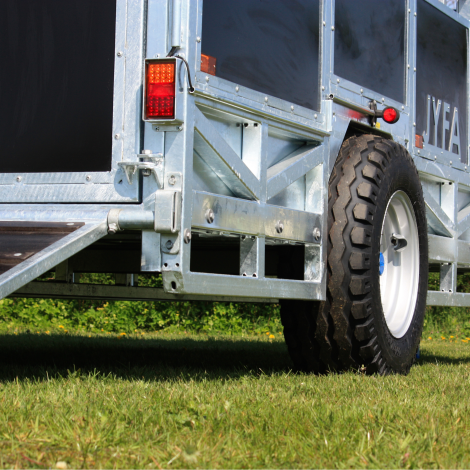

✔ Wheel size: 13,0/65x18/16
Optional Extras
Order
This product is not available online. Please order directly from your nearest dealer - Find a JYFA dealer close to you!
Article No. | 40500 |
---|---|
Trailer box length | 5 m |
Total length including drawbar | 6,4 m |
Inner trailer width | 2 m |
External trailer width | 2,35 m |
Floor space | 9,5 m2 |
Number of animals (cattle) | Approx. 5-7 |
Loading height | Approx. 48-50 cm |
Wheel size | 13,0/65x18/16 |
